Pressure Measurement
Description
- Absolute / Gauge / Vacuum / Differential Pressure Transducer
- Rugged and Durable High and very low-level pressure sensor
- Accuracy up to ± 0.05% and 4 to 20 mA or 0 to 5 VDC output
- Suitable for temperature from -196 to 200 Deg C.
- Variable reluctance pressure sensor capable of range change
- Ultra-low & Ultra High line type pressure transducer
- FM, CSA, ATEX & IEC, SIL, Intrinsically Safe, Hazardous, and
- Explosion-proof approvals
- USB interface, HART, CANbus interface and RS 485 communication
- Airworthy / Marine / Transportation / Railway / Rugged application / Cryogenic
Description
- Pressure range: 0-5Kpa……40Bar
- Output : 4~20mA, Hart Protocol
- Display: LCD
- Power Supply: 12VDC~36VDC
- Pressure Port: M20*1.5
- Accuracy:0.075%F.S
- Working temperature: -30c~+400c
- Certificate : CE,Exiall CT6 Ga, ATEX , RoHS
Description
- Accuracy : <+0.5%F.S(Typical);<+0.25%F.S(by customized)
- Temperature Compensation : 0c ~ 50c
- Output : 4-20 mA, 0-5V,0-10V,I2C,RS485…
- Power Supply:7~30Vdc,8~30Vdc,15~30Vdc,7-30Vdc
- Electrical Connection : Fixed cable and water proof IP67(HPT700-G) Terminal Box DIN 43650 IP65(HPT700-H,HPT700-G)
- Response Time : <10ms
- Pressure Type : Differential Pressure(Gauge Type
- Certificate: ExiallCT6 and CE Certificate
- Water Proof : IP65 to IP68 Optional by Model

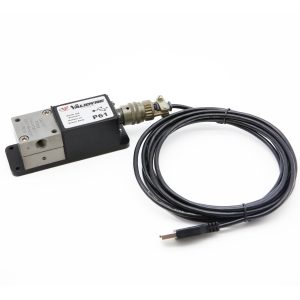

Pressure Transducer
- Absolute / Gauge / Vacuum / Differential Pressure Transducer
- Rugged and Durable High and very low-level pressure sensor
- Accuracy up to ± 0.05% and 4 to 20 mA or 0 to 5 VDC output
- Suitable for temperature from -196 to 200 Deg C.
- Variable reluctance pressure sensor capable of range change
- Ultra-low & Ultra High line type pressure transducer
- FM, CSA, ATEX & IEC, SIL, Intrinsically Safe, Hazardous, and
- Explosion-proof approvals
- USB interface, HART, CANbus interface and RS 485 communication
- Airworthy / Marine / Transportation / Railway / Rugged application / Cryogenic
Smart Pressure Transmitter
- Pressure range: 0-5Kpa……40Bar
- Output : 4~20mA, Hart Protocol
- Display: LCD
- Power Supply: 12VDC~36VDC
- Pressure Port: M20*1.5
- Accuracy:0.075%F.S
- Working temperature: -30c~+400c
- Certificate : CE,Exiall CT6 Ga, ATEX , RoHS
Differential Pressure Transducer
- Accuracy : <+0.5%F.S(Typical);<+0.25%F.S(by customized)
- Temperature Compensation : 0c ~ 50c
- Output : 4-20 mA, 0-5V,0-10V,I2C,RS485…
- Power Supply:7~30Vdc,8~30Vdc,15~30Vdc,7-30Vdc
- Electrical Connection : Fixed cable and water proof IP67(HPT700-G) Terminal Box DIN 43650 IP65(HPT700-H,HPT700-G)
- Response Time : <10ms
- Pressure Type : Differential Pressure(Gauge Type
- Certificate: ExiallCT6 and CE Certificate
- Water Proof : IP65 to IP68 Optional by Model
