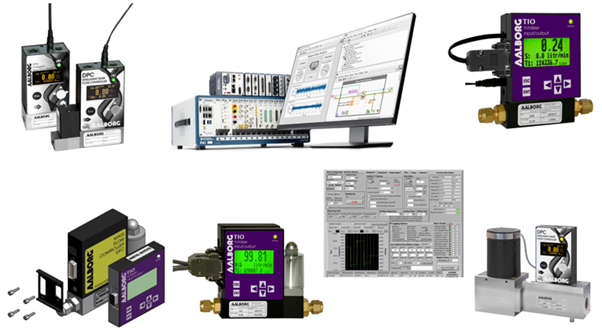

Gas Flow Measurement
Benefits
- Multi-Gas functionality: support for 90 different gases and gas mixes.
- Multi-Parameter functionality: Mass Flow, Volumetric Flow, Gas Pressure, and temperature.
- “User-Defined Mixture” functionality allows to create and store of 20 • custom gas mixes with up to 5 different gases each.
- Optional Modbus RTU network interface with isolated RS485 transceiver.
- User programmable solid state relay with latch option.
- Universal 12-26 Vdc power supply input.
- Local high contrast OLED (optional) graphic display with joystick control.
- Free, easy-to-use configuration and calibration software (RS-232/RS-485)
- Programmable setpoint table with ramping up/down capability up to 16 steps.
- Standard accuracy ± (0.5% RD + 0.2% FS).
- 200 to 1 turndown ratio.
- Quick Response time (< 20ms) for DPM and (100-150 ms) DPC series
- Two programmable mass flow rate totalizers.
- High, Low, or In Range Alarms with preset action delay for Mass Flow, Temperature, and Pressure.
- User programmable mass flow rate Pulse Output (via SSR).
- Extensive Self Diagnostics with status LED or OLED indication.
- All 3 user-selectable analog input and output interfaces are standard: 5Vdc, 0-10Vdc, 4-20mA.
- Two user-selectable digital communication interfaces (RS-232 and RS- • 485) are standard.

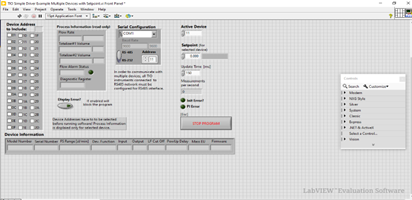

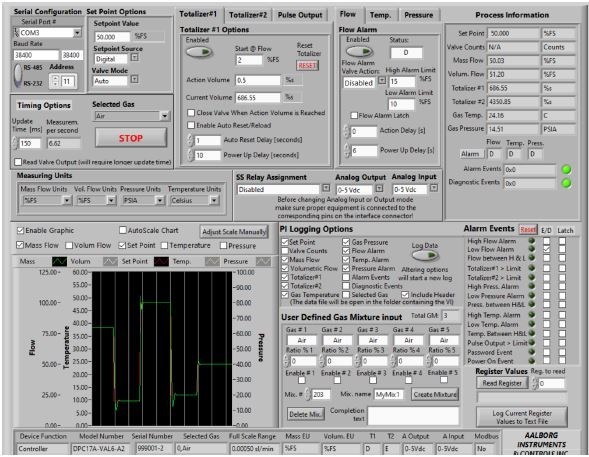

LABVIEW INTERFACE SOFTWARE FOR MASS FLOW METERS/ CONTROLLERS ACQUISITION SYSTEM
- MFC’s Connectivity with Software using serial communication
- Data Storage & Control capability through software
- MFC configuration, setpoints, Totalizer, and control functionality

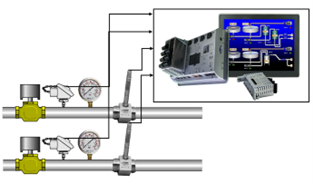

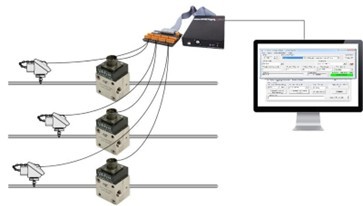

CUSTOM SOLUTION WITH SENSOR, DAQ & SOFTWARE

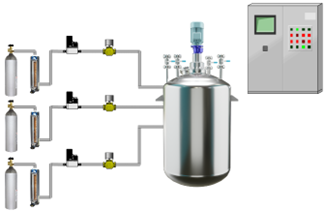

- Gas Mixing, Flow Measurement & Control Solution
- Liquid & Flow Measure & Control
- Pressure & Temperature Measurement
- Data Acquisition and Reporting
- Control Panel with Data Storage & Software
