Data Acquisition & Control
Panel Meters / Indicators
- Wide range of models, sizes, and capabilities
- Display count, rate, time, voltage, current, process, strain gauge, and temperature
- Field-upgrade-able plugin modules
- Indication, Control, and Advance Control options
- Upto 9 digits Red and Green LED display
- Upto 6 digits Large LED Display
- Powerful, configuration software across all types of meters (Crimson®)
- Product customization available
- 1/4, 1/8, and 1/16 DIN Sizes available
- Universal Analog or Digital Input and Dual or Quad outputs
- Suitable for Indoor and Outdoor applications
- Sunlight Readable Display
Types of Panel Meter
- Universal Input Indicator / Controller
- Battery Powered & Loop Power Indicator
- Thermostats & ON /OFF Controller
- PID Controller & Dual Loop Controller
- Multiloop / Multifunction Controller – 8 PID
- Advanced Programmed Controller
- Servo Motor Controller
- Modular Controller
- Large LED Displays
- Touch Screen Control Indicator (New Feature)

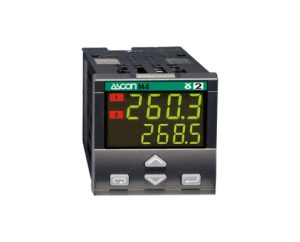

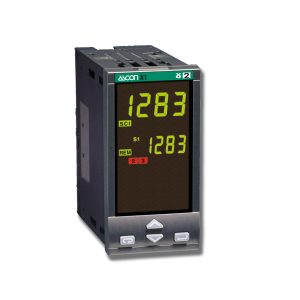

PID Controllers
- From single to multi-point control, it has the right PID controller for any application.
- Provides a wide range of proportional-integral-derivative (PID) controllers that are rugged, reliable, and easy to deploy.
- Our PID controllers offer industry-leading features and reliable performance designed for the most demanding applications.
- More reliable control over a wide range of processes from a single PID controller.
- Available in 1/16, 1/8, and 1/4 DIN size models, the PXU accepts process, thermocouple, and RTD signals and presents values on one of the industry’s largest dual displays.
- Stack hot-swappable modules together for a space-saving solution. Available features include protocol conversion, virtual HMI, advanced web server, SQL query, and cloud connectors.

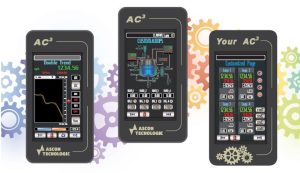

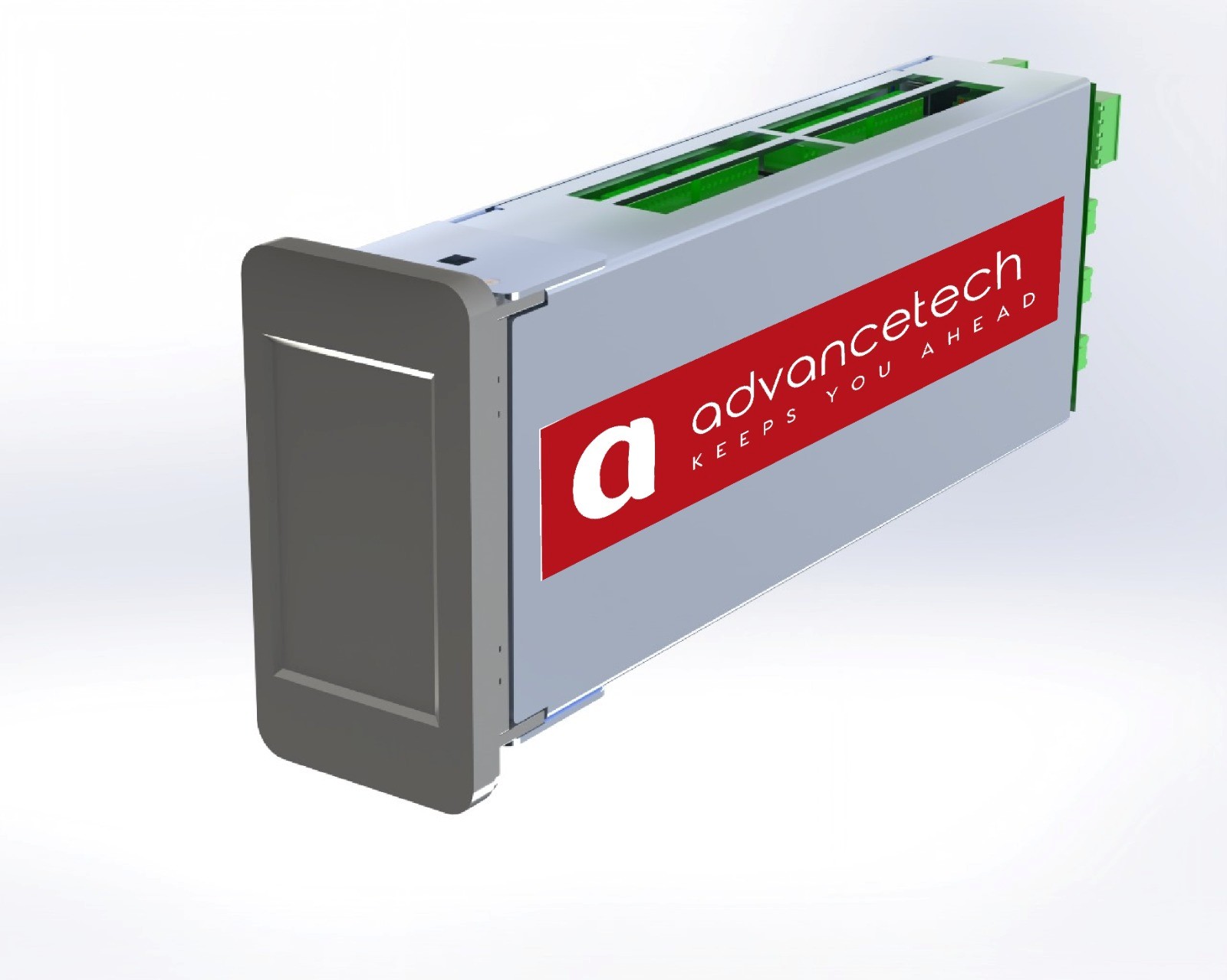

Advanced Multiloop Process Controller
- Multiple Analog Input/output and Digital Input/output combination
- Ideal for direct replacement for Siemens 353,353, Bailey SLC and CLS, ABB Kent-Taylor
- IO Configuration - Basic or Extended I/O Configuration with Analog & Digital
- Standard DIN size 144 X 72 mm
- Multiple PID loops, Math, Logic, and sequence
- Robust, highly visible display resistant to temperature & power surge
- Peer-to-peer and Modbus RS-485 or Modbus TCP over Ethernet
- User-Friendly Function-block style configuration software. Over 200 blocks in library and customizable Block for various functions
- Standard programs available for applications like Boiler, Heat Treatment, Pressure control and several others

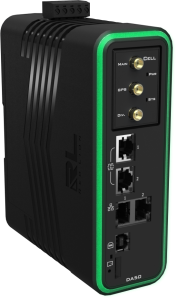

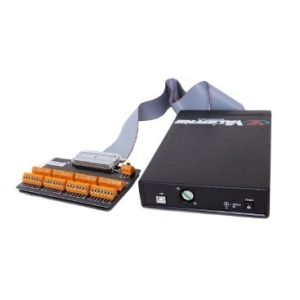

Data Acquisition Systems
Support for 300+ protocols and conversions including MQTT – Industry 4.0 ready

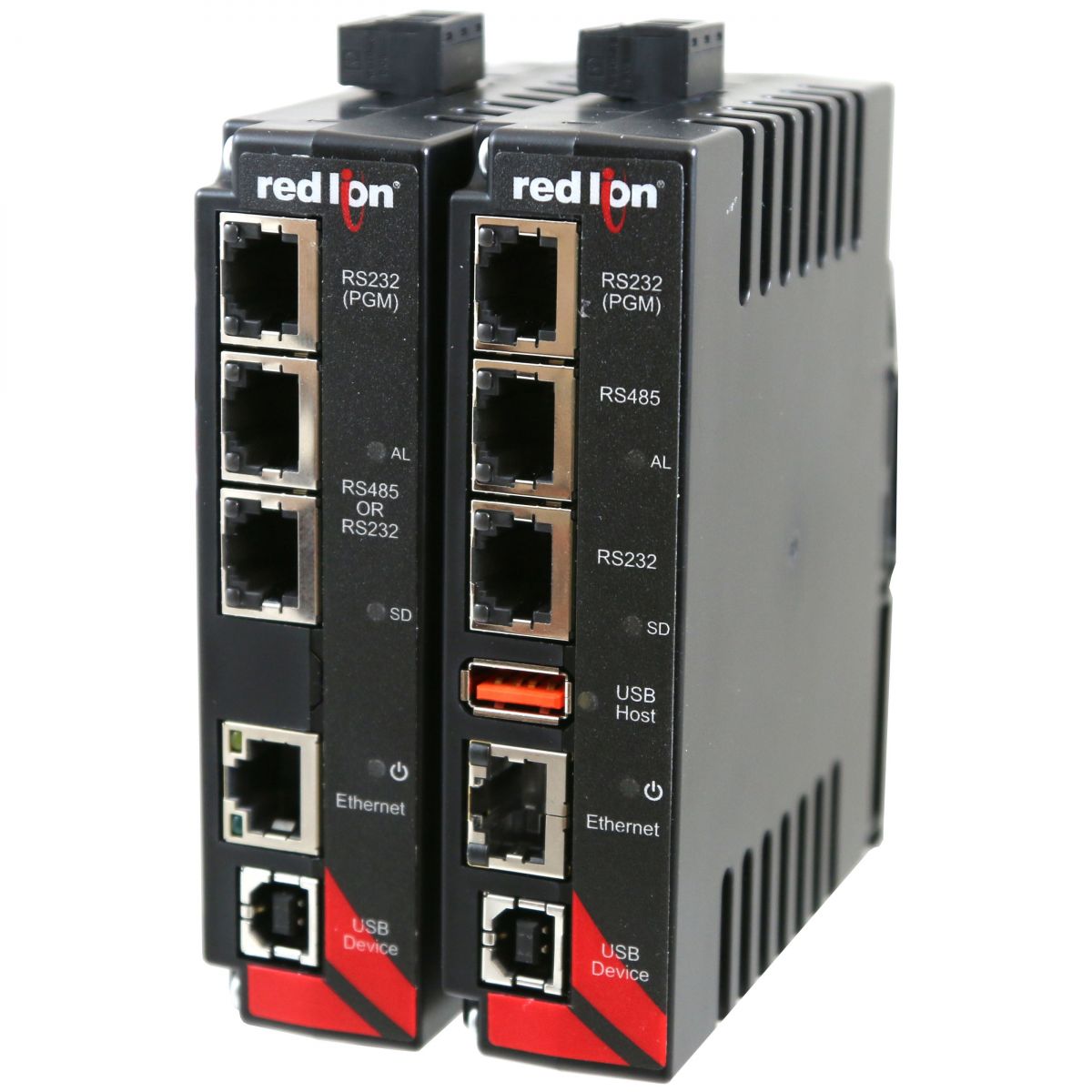

FLEXEDGE – ANYTHING IN. ANYTHING OUT. ANYWHERE HIGH-PERFORMANCE PROTOCOL CONVERTER AND DATA ACQUISITION SYSTEM WITH DATA LOGGER, WEB SERVER AND VIRTUAL HMI
Protocol converter + Visualization + Cellular gateway + Micro PLC
Our Solutions & Benefits
- Highly scalable IIoT platform with communication technology
- Industry-leading protocol conversion, visualization, and IIoT cloud connectivity,
- Makes deployment, management, and upgrading simple and straightforward.
- Hot-swappable I/O module’s configuration with Hazardous certification
- A multitude of communication options: Ethernet, Wi-Fi, serial, USB, and cellular.
- Features a rugged enclosure, wide operating temperature range -40° to 75°C
- Hazardous Location (HazLoc) Certifications including UL Class1, Division 2, and ATEX/IECEx.
- Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
- Embedded OPC UA server functionality eliminates need for separate system hardware
- OPC UA Client Driver & OPC UA Historical Access
- Store and Forward Buffering for Cloud Connectors
- SQL queries feature simplifies batch and recipe management
- Built-in data, event and security logging with cryptographic signature support enhances troubleshooting and helps meet regulatory requirements
- Advance web server and multiple connectivity
Programmable Logic Controllers
- Programmable control unit according to IEC61131-3 standard
- High performing ARM Cortex M7 32-bit, 216 MHz processor
- Memory 16 MB Flash, 32 MB SDRAM, 128 KB MRAM
- Panel Cutout: 68 x 138 mm
- 1x 10/100 MB Ethernet port
- 0/1/2 serial: RS232 / 485 + 1 RS485 (optional, isolated)
- USB port: Micro USB type AB
- Protocols: Modbus TCP (Server), Modbus RTU, ASCII
- 8 AI/AO and 16 DI/DO inbuilt with Expandable Modules
- Front touchscreen panels

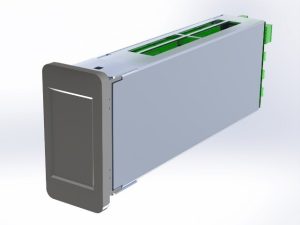

- Multiloop / Multifunction process controller
- LCD TFT display with touch screen
- Compact, split, or remote installation modes
- PID with auto-tuning and advanced algorithm
- Real-time Trend functions and Customized logic functions
- Customize graphics with no limit on pages

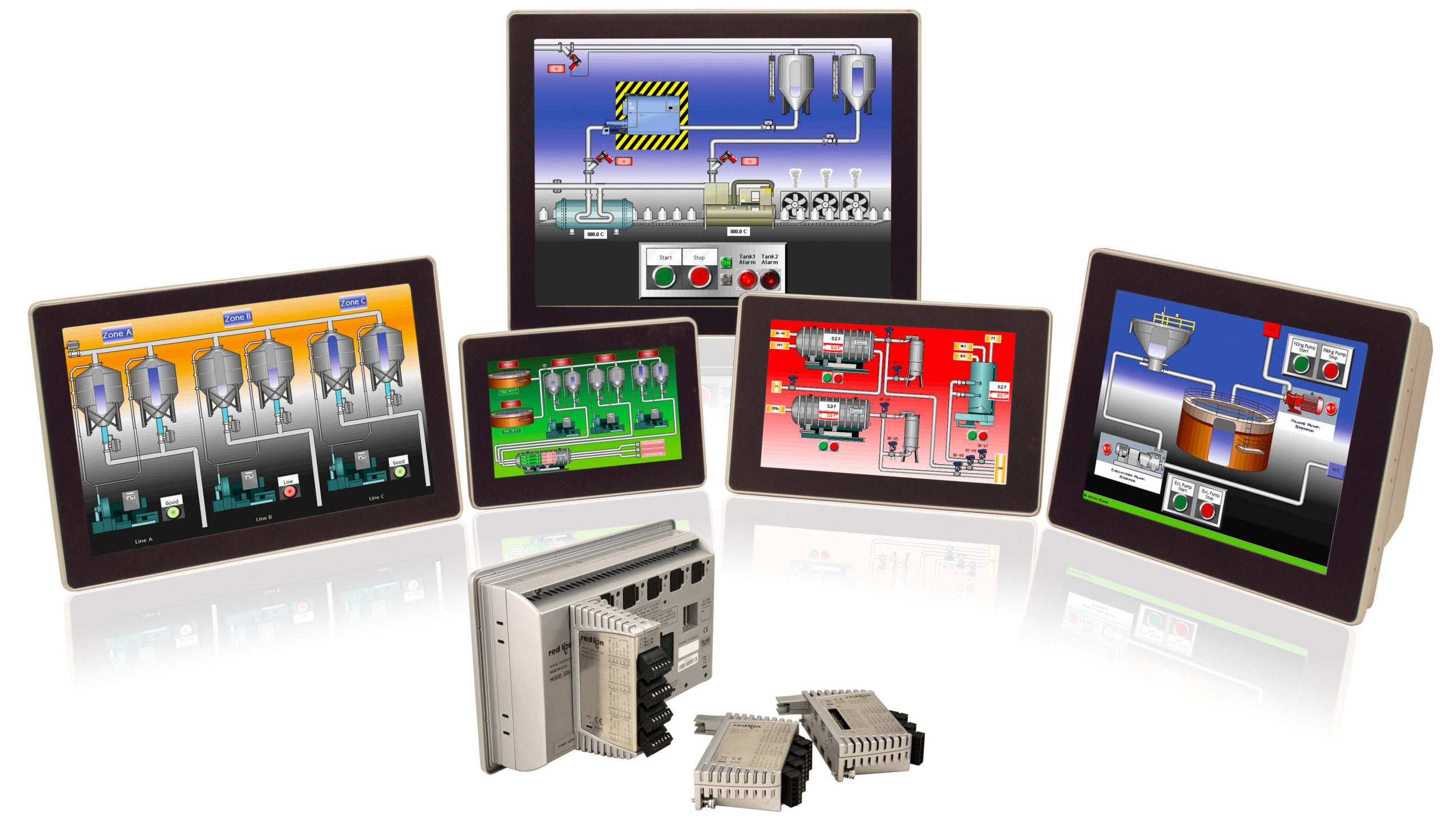

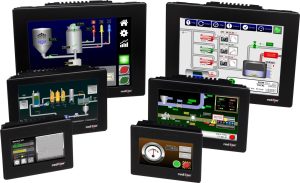

HMI Display
- Various Display Size - 4.3” to 15”
- Rugged Cast Aluminum or Polycarbonate Housing
- Sunlight readable display for outdoor-rated models
- Up to 4 Serial Port (RS232 / RS485) and 2 Ethernet Port
- Up to 2 USB Host Port for upload/download and 1 USB Device Port
- Industry 4.0 Support Device
- SQL Queries and Conversion & Import
- Supports email and/or SMS notifications on alarm conditions
- Convert up to 20 protocols simultaneously from over 300 supported drivers
- Expansion port to select add-on modules like Cellular / Wi-Fi / CANbus/ Profibus / Devivenet
- Rugged display with on board I/O
- Powerful ARM9 CPU, Up to 1024x768 resolution & supports 16 M colours
- IP66 NEMA 4X front panel standard
- -20° to 60°C operating temperature
- New Primitives, Gauges & Symbols library
- SD Card support for data backup / storage
- Real Time Clock with battery back up
- Web server – Browse from any device
- UL, UL Haz, ABS, ATEX, IECEX Certification
Remote IO Modules
- It is a data acquisition module and simultaneously an output slave module.
- The instrument has an RS485serial communication interface with MODBUS-RTU communication protocol and provides up to 4 relay outputs, up to 4 configurable inputs for PTC.
- NTC, Pt1000 temperature probes.
- 2 digital inputsare also available, and as an alternative to the inputs for the Pr3 and Pr4 temperature probes, another 2 digital inputs can be configured.
RTU
- Variety of connectivity, I/O, and programmability
- Open Linux operating system for a scalable RTU
- RTUs can address up to 16,000 Sixnet nodes or 247 Modbus nodes per controller.
- Supporting Modbus, Modbus TCP, DNP3, SNMP, IEC60870-5, and Sixnet UDR protocols
- UL Class I, Division 2 listing, CSA, CE and ABS Marine ratings, our IPm RTUs will operate reliably. Temp. -40° to 70°C.

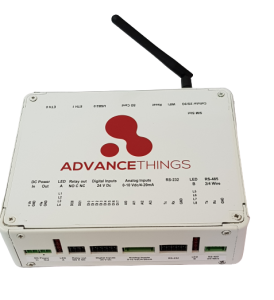

IOT Devices
- NXP ARM Cortex™-A5 Or Cortex™-A7 SoC
- Onboard RAM and Flash
- Ethernet 10/100 X 2
- Isolated RS485X1 & RS232X1
- Digital IO and Analog IO
- Fan less Cooling
- 2G/3G (optional)
- Wi-Fi (optional)
- Modbus RTU
